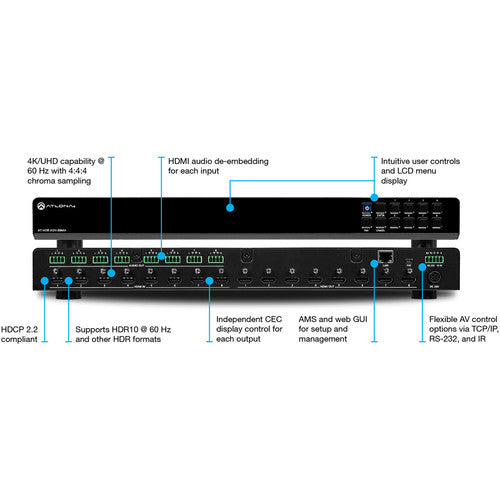

The Atlona AT-HDR-H2H-88MA is an 8×8 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-88MA is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-H2H-88MA includes EDID and HDCP management features, and can send CEC display control independently to each output. An unbalanced analog audio output is paired with each HDMI input for sending de-embedded HDMI audio to a whole-house audio system. The HDR-H2H-88MA can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.
The HDR-H2H-88MA is designed to deliver dependable, pristine-quality image presentations in residential as well as commercial applications. It includes Atlona's award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.
(Note: The HDR-H2H-88MA de-embeds HDMI two-channel PCM audio. For extracting and downmixing Dolby® and DTS® audio, Atlona recommends adding one or more AT-HDR-M2C audio converters.)
Applications
Configured and Managed by AMS
The Atlona Management System (AMS) is a powerful network software platform ideal for configuring, managing, and monitoring the HDR-H2H-88MA and other Atlona IP-controllable devices over a LAN, WAN, or VPN. AMS is available free from Atlona, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.
| GENERAL INFORMATION | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HDR-H2H-88MA |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | HDR-H2H-88MA |
| Product Name | 4K HDR 8×8 HDMI Matrix Switcher |
| Product Type | Audio/Video Switchbox |
| TECHNICAL INFORMATION | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 8 |
| Device Supported | Blu-ray Disc Player |
| Speaker | |
| Projector | |
| Set-top Box | |
| Display | |
| Number of Displays Supported | 8 |
| VIDEO | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| INTERFACES/PORTS | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 8 |
| Number of HDMI Outputs | 8 |
| MEDIA & PERFORMANCE | |
| Maximum Operating Distance | 30 ft |
| PHYSICAL CHARACTERISTICS | |
| Form Factor | Rack-mountable |
| MISCELLANEOUS | |
| Package Contents | 4K HDR 8×8 HDMI Matrix Switcher Installation Guide IR Remote Control Rack Mounting Brackets External Universal Power Supply |
| WARRANTY | |
| Limited Warranty | 10 Year |
| ITEM DETAILS | |
| Model Number | AT-HDR-H2H-88MA |
| Brand | Atlona |
| Category | Signal Distribution/Switchers/Matrix Switchers |
| Mfr ID | ATLONA |
| UPS Shippable | Y |
| Shipping Weight | 14 |
| UPC Code | 846352005931 |
