Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Primary Information

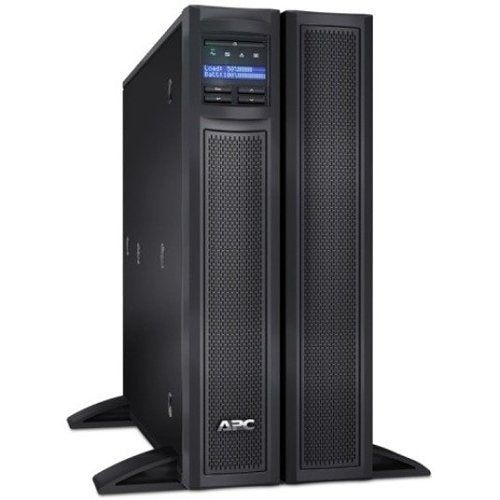

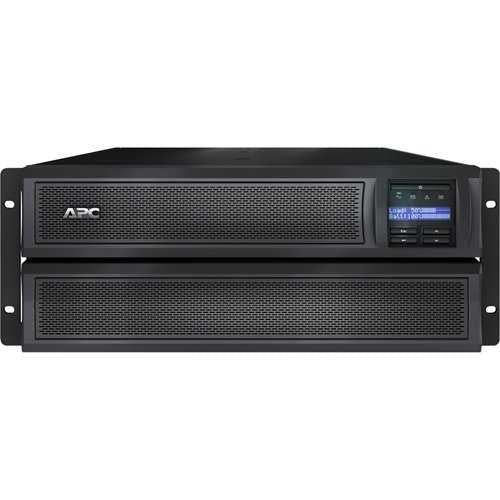

| Product Description: | APC Smart-UPS X 2000 Rack/Tower LCD - UPS - 1800 Watt - 1920 VA |
| Device Type: | UPS - rack-mountable / external |
| Rack Size: | 4U |
| Weight: | 85.19 lbs |
| Localization: | Canada, United States |
| Input Voltage: | AC 120 V |
| Output Voltage: | AC 120 V ± 5% |
| Power Capacity: | 1800 Watt / 1920 VA |
| Input Connectors: | 1 x power NEMA 5-20 |
| Output connectors: | 6 x power NEMA 5-15 ¦ 3 x power NEMA 5-20 ¦ 1 x power NEMA L5-20 |
| Battery: | Lead acid |
| Battery Form Factor: | Internal |
| Batteries Qty: | 1 |
| Run Time (Up To): | 11 min at full load |
| Networking: | RS-232, USB |
| Included Accessories: | Tower stand |
| Color: | Black |
| Dimensions (WxDxH): | 7 in x 19 in x 17 in |
| Manufacturer Warranty: | 3-year warranty |
| Designed For: | P/N: AR2487G, AR3105W, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4000MVX429, AR4000MVX432, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A, SMX2200HVNC, SMX3000LVNCUS |
- General
| Device Type: | UPS - rack-mountable / external |
| Battery Enclosure Type: | Internal |
| Height (Rack Units): | 4U |
| Color: | Black |
| Localization: | Canada, United States |
- Power Device
| UPS Technology: | Line interactive |
| Input Voltage: | AC 120 V |
| Input Voltage Range: | AC 70 - 153 V |
| Input Voltage Range (Adjustable): | AC 75 - 154 V |
| Frequency Provided: | 47 - 53 / 57 - 63 Hz |
| Frequency Required: | 50/60 Hz |
| Input Connectors: | 1 x power NEMA 5-20 |
| Power Output Connectors Details: | 6 x power NEMA 5-15 ¦ 3 x power NEMA 5-20 ¦ 1 x power NEMA L5-20 |
| Output Voltage: | AC 120 V ± 5% - 47 - 53 / 57 - 63 Hz |
| Power Capacity: | 1800 Watt / 1920 VA |
| Output Waveform: | Sinewave |
| Surge Suppression: | Yes |
| Surge Energy Rating: | 540 Joules |
- Battery
| Quantity: | 1 |
| Technology: | Lead acid |
| Run Time (Up To): | 11 min at full load ¦ 28 min at half load |
| Recharge Time: | 3 hours |
| Transfer Time: | 2 ms |
- Networking
| Remote Management Interface: | RS-232, USB |
- Expansion / Connectivity
| Interfaces: | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) |
| Expansion Slots: | 1 (total) / 1 (free) x SmartSlot |
- Miscellaneous
| Included Accessories: | Tower stand |
| Cables Included: | Serial cable - external ¦ USB cable - external ¦ Power cable 8 ft |
| Rack Mounting Kit: | Included |
| Features: | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries |
| Compliant Standards: | CSA, TUV, BSMI, NOM, UL 1449, UL 1778, EN55022 Class A, EN 50091-2, RoHS, FCC Part 15 A, REACH, VCCI Class A |
- Software / System Requirements
| Software Included: | Drivers & Utilities |
- Manufacturer Warranty
| Service & Support: | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
- Environmental Parameters
| Min Operating Temperature: | 32 °F |
| Max Operating Temperature: | 104 °F |
| Humidity Range Operating: | 0 - 95% |
| Sound Emission: | 55 dBA |
- Dimensions & Weight
| Width: | 7 in |
| Depth: | 19 in |
| Height: | 17 in |
| Weight: | 85.19 lbs |
- Dimensions & Weight (Shipping)
| Shipping Width: | 23.1 in |
| Shipping Depth: | 24.9 in |
| Shipping Height: | 13 in |
| Shipping Weight: | 105.23 lbs |
