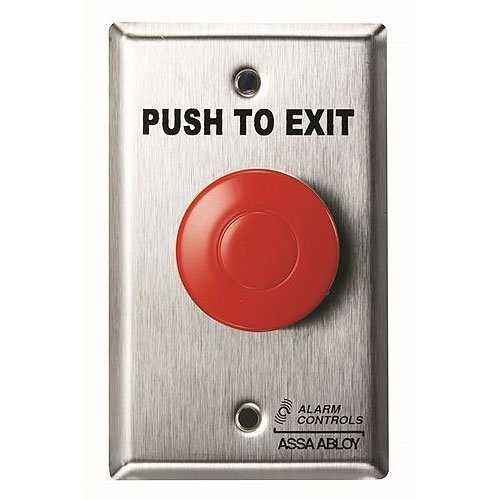

Alarm Controls TS 14R Request to Exit Button with Pneumatic Timer - 1.5" Red Push Button, 430 Stainless Steel - Ideal for Commercial Buildings & Security Systems

The TS-14 request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.

Features

Standard Features

• Switch mounted on single gang wall plate with 430 stainless steel finish
• 1-1/2" green mushroom push button
• Plate screened “PUSH TO EXIT” for easy to follow egress instructions
• Pneumatic time delay is adjustable 2 to 60 seconds
• Does not require external power for operation

Options

• TS-14Rwith red mushroom push button
• TS-14Nwith switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
• TS-14NRmounted on narrow wall plate with red push button
• TS-14302mounted on weather resistant plate with 302 stainless steel finish
• Finishes: multiple plate finishes available
• Custom screening available

Specifications

Certifications & Listings:UL 294 listed

Electrical:

• One N/O and one N/C contact pair
• Contacts rated 10A at 120 VDC
• Switch depth behind plate: 2-1/4"
• Switch time repeatable +/- 10%
• Switch terminated with 10” colored leads

Operating Temperature:+15 to 120F (-9 to 49C)
